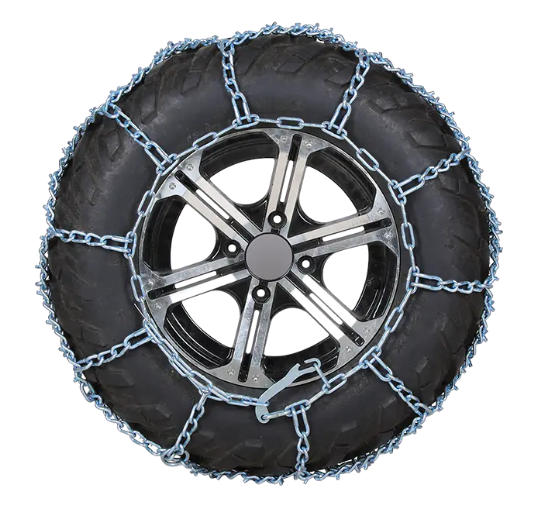

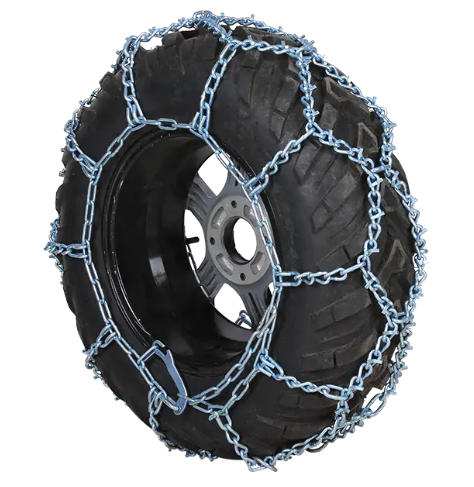

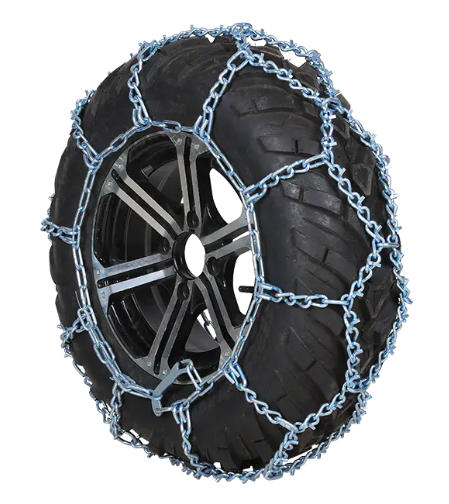

ATV V-Bar Diamond Tire Chain

Diamond Pattern v-bar tire chains for ATVs.

Pattern style for long life and better traction in extreme traction situations.

V-bar for ice breaking and maximum traction off-road.

ATV/UTV ladder V-Bar tire chains are a type of tire chain designed for use on small vehicles such as ATVs, UTVs, and other similar equipment in snowy and icy conditions. These chains feature a ladder-style design that creates a crisscross pattern across the tire tread and V-shaped bars that run perpendicular to the tire tread, providing extra traction and grip on both sides of the tire.

Vehicle Type	ATV/UTV
Construction	Alloy Steel link
Cross Member Pattern	Diamond Pattern
Tensioners Required	Yes
Type	V-bar Alloy
Has Cam Locking Mechanism	No
Packaging	Plastic Box/Bag
Finish	Electro-Galv



Items NO	Tire Size
DV-0016	20×10-8	22×10-8	22×11-8	20×10-9	22×10-9.22×11-9	22×10-10	22×11-10	24×8-11
DV-0017	24×10-11	24×11-11	24×9-11	23×10-12	25×8-12
DV-0018	25×12-9	25×11-10	25×12-10	25×10-1225×12-12	26×10-12	26×12-12
DV-0019	27×9-12	27×11-12	27×10-12
DV-0020	27×12-12	28×10-12	28×12-12	30×10-12
