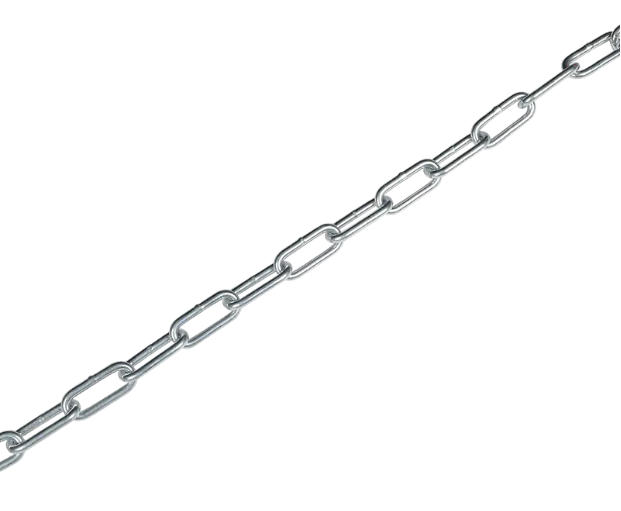

Coil Straight Link Welded Steel Chain (NACM90)

Finish: Self Colored, Zinc Plated

Produced to the NACM standards

Do no tuse in overhead lifting applications

Coil straight link welded steel chain, also known as NACM90 chain, is a type of chain commonly used in industrial and agricultural applications. It is made from welded steel links that are formed into a continuous coil, creating a flexible and strong chain that is resistant to deformation and breakage.

Coil straight link welded steel chains are commonly used for applications such as lifting and rigging, hoisting, towing and securing loads. They are available in a range of sizes and strengths to suit different needs and can be used with a variety of accessories such as hooks, shackles, and connectors.



Trade Size		Material Diameter		Nominal Inside Length		Nominal Inside Width		Work Load Limit (MAX.)		Proof Test (MIN.)		Breaking Force (MIN.)
	mm	in	mm	in	mm	in	mm	LBS	KG	LBS	KN	LBS	KN
4	3.0	0.120	3.0	1.11	28.1	0.21	5.32	205	93	410	1.82	820	3.64
3	3.4	0.135	3.4	1.17	29.8	0.24	6.09	255	116	510	2.27	1020	4.53
2	3.8	0.148	3.8	1.18	29.9	0.26	6.59	310	141	620	2.76	1240	5.51
1	4.1	0.162	4.1	1.25	31.7	0.28	7.10	370	168	740	3.29	1480	6.58
1/0	4.5	0.177	4.5	1.25	31.7	0.31	7.86	440	200	880	3.91	1760	7.82
2/0	4.9	0.192	4.9	1.26	31.9	0.34	8.62	520	236	1040	4.63	2080	9.24
3/0	5.3	0.207	5.3	1.30	32.9	0.36	9.13	605	274	1210	5.38	2420	10.76
4/0	5.5	0.218	5.5	1.39	35.2	0.38	9.64	670	304	1340	5.96	2680	11.91
5/0	6.4	0.250	6.4	1.52	38.5	0.44	11.20	880	399	1760	7.83	3520	15.64
