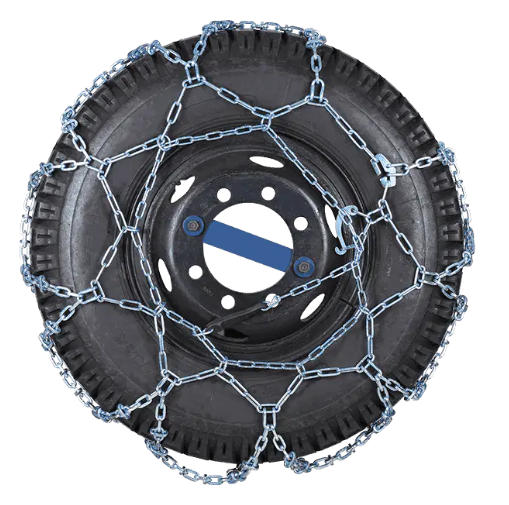

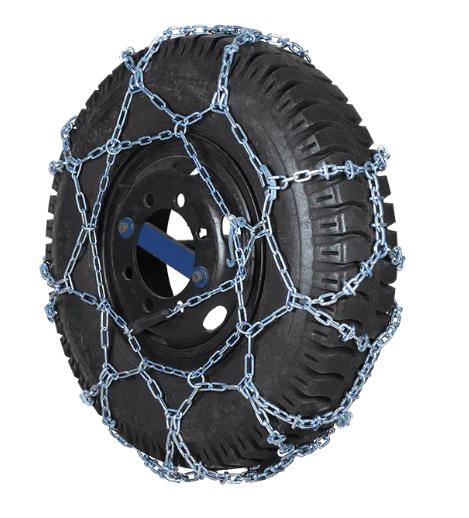

TNP Diamond Pattern Square Alloy Ruck Snow Chain/Tire Chain
Truck chain with reinforced links. Reinforced for intensive use.
• Approved in accordance with the ÖNORM V5119 standard.
• Cross chain Link thickness of 4.5 mm, 5.5 mm, 7 mm, or 8 mm.

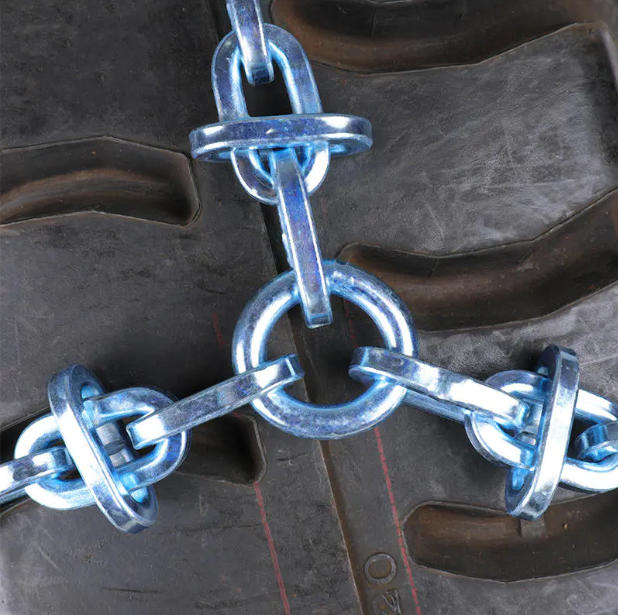

• Running surface in rhomboid shape made of special alloy steel, with “D” profile links for safe grip on snow and ice.
• High-quality heat treatment – Carburizing.
• Reinforced with additional “D” profile links for better grip and durability.
• Operating instructions enable fast assembly.
| Vehicle Type | Truck |
| Construction | Alloy Steel link |
| Cross Member Pattern | Diamond Pattern |
| Tensioners Required | No |
| Type | Square link Alloy |
| HAS Locking Mechanism | Yes |
| Packaging | Bag |
| Finish | Electro-Galv |
| Items NO | Tire Size | |||||||
| TNP190 | 165R14 | 165/75R14 | ||||||
| TNP200 | 175R14 | 175/75R14 | 6.50-14 | |||||
| TNP205 | 670-13 | |||||||
| TNP210 | 185R14 | 185/75R14 | 6.40-14 | 7.00-14 | ||||
| TNP220 | 195R14 | 195/75R14 | 6.70-14 | 195/70R15 | 205/65R15 | 175R16 | 175/75R16 | 185-380 |
| 17-380 | ||||||||
| TNP225 | 205R14 | 205/75R14 | 195R15 | 205/70R15 | 205/75R15 | 185/75R16 | ||
| TNP230 | 215R14 | 215/75R14 | 7.50-14 | 215/70R15 | 225/70R15 | 6.70-15 | GR78-15 | 185R16 |
| 195R16 | 195/75R16 | 6.00-16 | 6.40-16 | 8.00-16.5 | ||||
| TNP240 | 215R15 | 215/75R15 | 225/75R15 | 7.00-15 | 28×9-15 | HR78-15 | 205R16 | 205/75R16 |
| 6.50-16 | 7.00-17.5 | 19-400 | ||||||
| TNP245 | 235/70R15 | 235/75R15 | 215R16 | 215/75R16 | 215/85R16 | 225/75R16 | ||
| TNP246 | 27×8.50-15 | |||||||
| TNP247 | 8.40-15 | 30×9.50-15 | 215-380 | |||||
| TNP248 | 250R15 | 250/70R15 | ||||||
| TNP250 | 265/70R15 | 7.50-15 | 9.00-15 | 245/70R16 | 7.00-16 | 205/75R17.5 | 215/75R17.5 | 8.00-17.5 |
| TNP255 | 255/75R15 | 265/75R15 | 10.00-15 | 31×10.5-15 | 31×10.50-16.5 | |||
| TNP258 | 10.0/80-12 | 10.0/75-15.3 | 10.00-16.5 | |||||
| TNP260 | 235/85R16 | 7.50-16 | 225/75R17.5 | 8.50-17.5 | 7.00-19.5 | |||
| TNP265 | 31×11.5-15 | |||||||
| TNP268 | 31×15.50-15 | |||||||
| TNP270 | 8.25-15 | 8.25-16 | 235/75R17.5 | 9.50-17.5 | 7.00-18 | 7.50-18 | 8.00-19.5 | 6.50-20 |
| 7.00-20 | ||||||||
| TNP273 | 250/80R16 | |||||||
| TNP275 | 245/70R19.5 | 265/70R19.5 | ||||||
| TNP277 | 275/80R18 | 10.5-18 | 10.5/80-18 | |||||
| TNP280 | 9.00-16 | 825-17 | 10.00-17.5 | 9.00-19.5 | 7.50-20 | 8.00-20 | 8-22.5 | |
| TNP285 | 315/70R15 | 300×15 | ||||||
| TNP290 | 11.00-16 | 225/90R20 | 8.25-20 | 9.50-20 | 255/70R22.5 | 9-22.5 | 8.3-24 | |
| TNP295 | 33×12.5-15 | 11.5/80-15.3 | 12.00-16.5 | |||||
| TNP296 | 305/70R19.5 | |||||||
| TNP300 | 9.00-20 | 275/70R22.5 | 295/70R22.5 | 10-22.5 | 11/70-22.5 | C22.5 Pilote | 9.5-24 | |
| TNP310 | 10.00-20 | 12/80-20 | 275/80R22.5 | 305/70R22.5 | 315/70R22.5 | 11-22.5 | D22.5 Pilote | |
| TNP320 | 11.00-20 | 315/75R22.5 | 315/80R22.5 | 12-22.5 | E22.5 Pilote | 305/70R24.5 | 315/75R24.5 | |
| TNP330 | 12.00-20 | 11.00-22 | 13-22.5 | 10.00-24 | ||||
| TNP350 | 275/70R19.5 | 285/70R19.5 | ||||||
| TNP358 | 275/80R20 | 10.5-20 | 11.2-20 | |||||
| TNP360 | 335/80R18 | 12.5-18 | 12.5/80-18 | |||||
| TNP370 | 13.6-16 | 335/80R20 | 12.4-20 | 12.5R20 | 13/80-20 | E20 Pilote | 295/80R22.5 | 13/75-22.5 |
| 12/80-22.5 | 11.2-24 | |||||||
| TNP380 | 1300-20 Pilote | 14.75/80-20 | ||||||
| TNP390 | 14.00-20 | |||||||
| TNP400 | 12.00-24 | F24 Pilote | 14/80-24 | |||||
| TNP520 | 365/80R20 | 375/75R20 | 14/80-20 | 14.5-20 | F20 Pilote | 385/65R22.5 | 15-22.5 | 320/70-24 |
| TNP525 | 425/65R22.5 | 16.5-22.5 | ||||||
| TNP530 | 445/65R22.5 | 18-22.5 | ||||||
| TNP730 | 17.5-25 | |||||||
| TNP740 | 20.5-25 | |||||||
| TNP750 | 23.5-25 | |||||||
